Neutrik BNC pack: 3× NBNC75BFG7X + 10× NBNC75BZV14

One Neutrik 75 Ω BNC pack (male, rearTWIST), brand new in their bags — sold as a single lot, not as individual pieces.

Pack contents
• 3× Neutrik NBNC75BFG7X — rearTWIST UHD BNC (4K / 8K / 12G-SDI)
• 10× Neutrik NBNC75BZV14 — rearTWIST HD BNC (HDTV)
Total: 13 connectors.

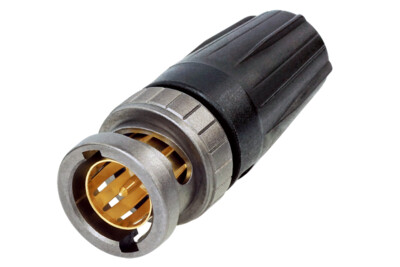

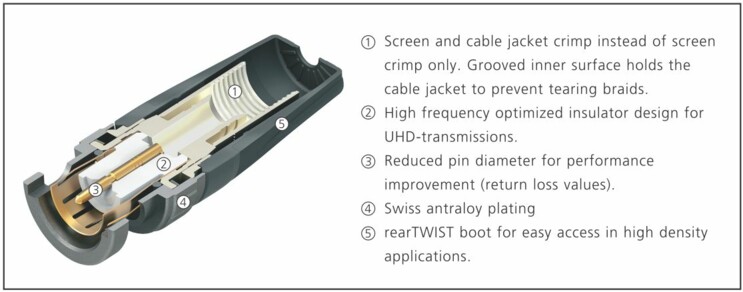

NBNC75BFG7X (UHD)
• Built for high-resolution video with low return loss on 4K/8K
• rearTWIST: unlock from the rear boot — useful on dense panels
• Swiss Antraloy plating · gold-plated centre contact
• Cable OD up to ~4.7 mm (e.g. Belden 1855ENH / Draka 0.6/2.8 AF per Neutrik guide)
• Crimp: pin 1.07 mm · shield 5.00 mm hex · die DIE-R-BNCX-PDG
• VSWR typically ≤1.06 to 6 GHz / ≤1.13 to 12 GHz / ≤1.22 to 18 GHz

NBNC75BZV14 (HD)
• True 75 Ω for HD applications
• Suitable cable: Belden 1794A (OD up to ~8 mm)
• Crimp: pin 1.6 mm square or 1.75 mm hex · shield 8.23 mm hex
• Optalloy plating · PTFE insert
• VSWR typically ≤1.050 to 1 GHz / ≤1.065 to 2 GHz / ≤1.100 to 3 GHz

Common
• BNC 75 Ω male, bayonet lock
• >1000 mating cycles
• Correct crimp tool/die required — no tool or cable included

Condition
Brand new, in their bags — 1 pack as listed.

Pricing
Our price (whole pack): €55.00 incl. VAT (€44.35 excl. VAT).
Price as new (single-piece retail reference): €80.00 incl. VAT (€64.52 excl. VAT).
VAT 24%.

Location / shipping
Agrinio · nationwide shipping at buyer cost via a courier of their choice. Payment by bank transfer or cash in person only; receipt or invoice provided.

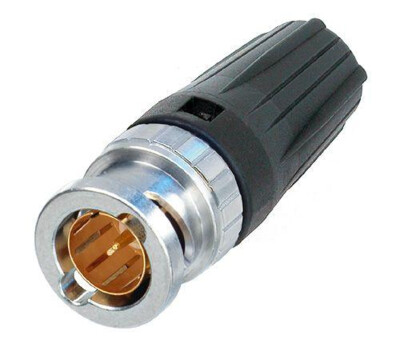

Image note
Photos are indicative Neutrik rearTWIST BNC shots and may differ from the actual bags/lot.
